描述

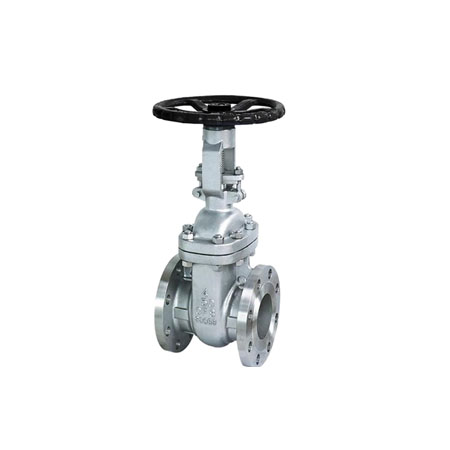

API 600 Wedge Stainless Steel Hand Wheel Gate Valve

Construction : Rising Stem, Bolted Bonnet, OS & Y
Design To : API 600/602/603/6D/ISO 10434/ISO14313/BS 1414/ASME B 16.34
Testing To : API 598
Flange to Flange (Face to Face): ANSI / ASME B 16.10
End Connection : Flanged, Threaded, Screwed, Socket Weld and Butt Weld End

Specifications:
Size: 2 “-48 ” (50mm~1200mm)
Pressure Rating: Class 150LB~ 2500LB(2000PSI~20000PSI)
Body, Material: WC1,WC6,WC9, alloy steel, WCB, CF8,CF8M,CF3,CF3M
Operating Type: Lever, Gear Pneumatic, Electric
